Short-sleeve compression top
The Suit is where the architecture stops being a device and becomes a system. The rigid coil is replaced by micro-Litz conductor woven into the compression panels, the LED ring becomes a flexible light-guide membrane, and the Peltier becomes thermal patches over the cervical and thoracic nodes.
The control board does not disappear, it detaches. A neck-mounted module holds the MCU, the power management and the cell, and comes off before the garment goes in the wash. That decision repeats across every worn unit in the family, which is why they can share one module design and one charger.
Coil routing and panel placement are drawn against a nerve map. The smart-weave itself is a textile development programme, not a part you can order.
Architecture
What is in it
ORRA Neural Suit carries 5 functional layers. Every named part is a real manufacturer part number, chosen once for the family and reused, so one qualification covers every unit that uses it.
NANODOSE smart-weave — micro-Litz conductor matrix in the compression panels
Chest and spinal columns

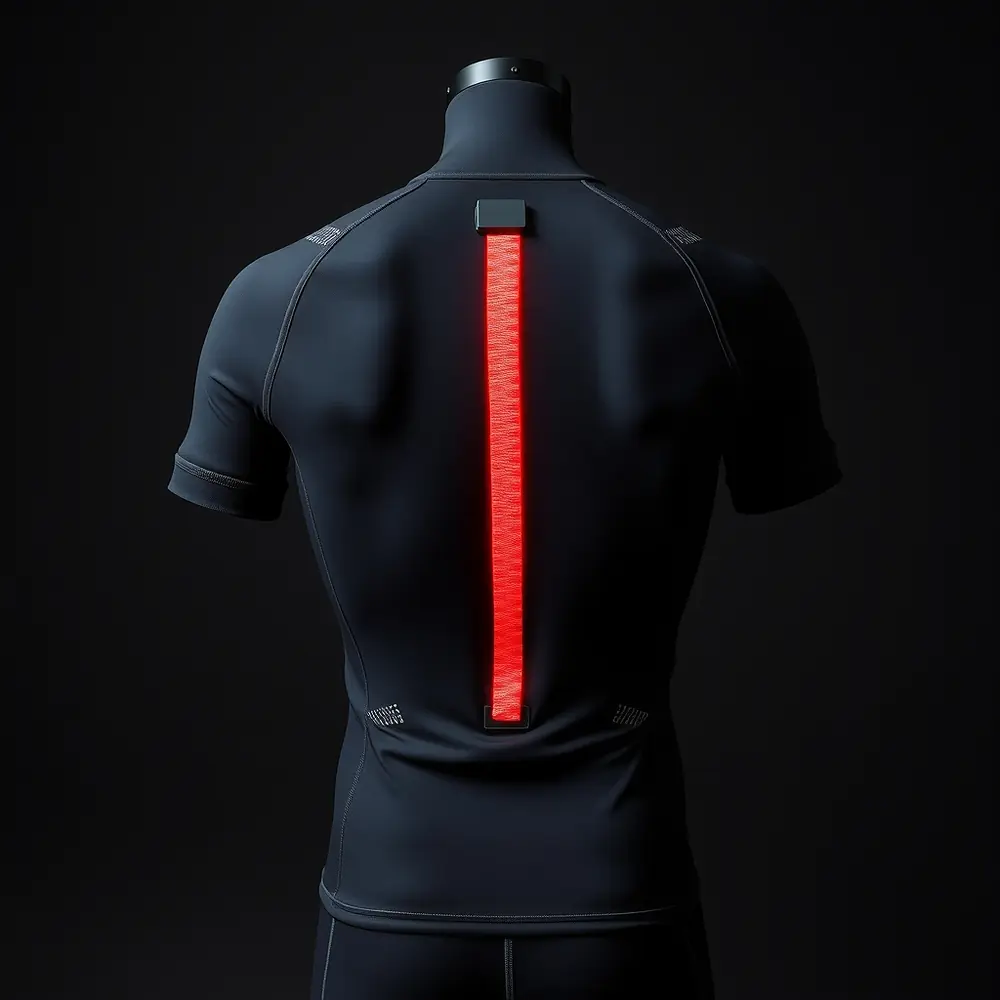

Flexible light-guide membranes at the shoulders and spine
660 nm and 810 nm micro-LEDs
Flexible TEC patches over the cervical/thoracic nodes
The 10 degC / 3 s jolt, worn
Distributed MAX30001 contacts + flexible IMU network
Neck module, detachable for washing
| Reaches | Worn or held | Calibration | Cost concept |
|---|---|---|---|
| Vagus nerve, Cervical and thoracic spine | Worn | Bio-impedance, before every session | Not yet costed |

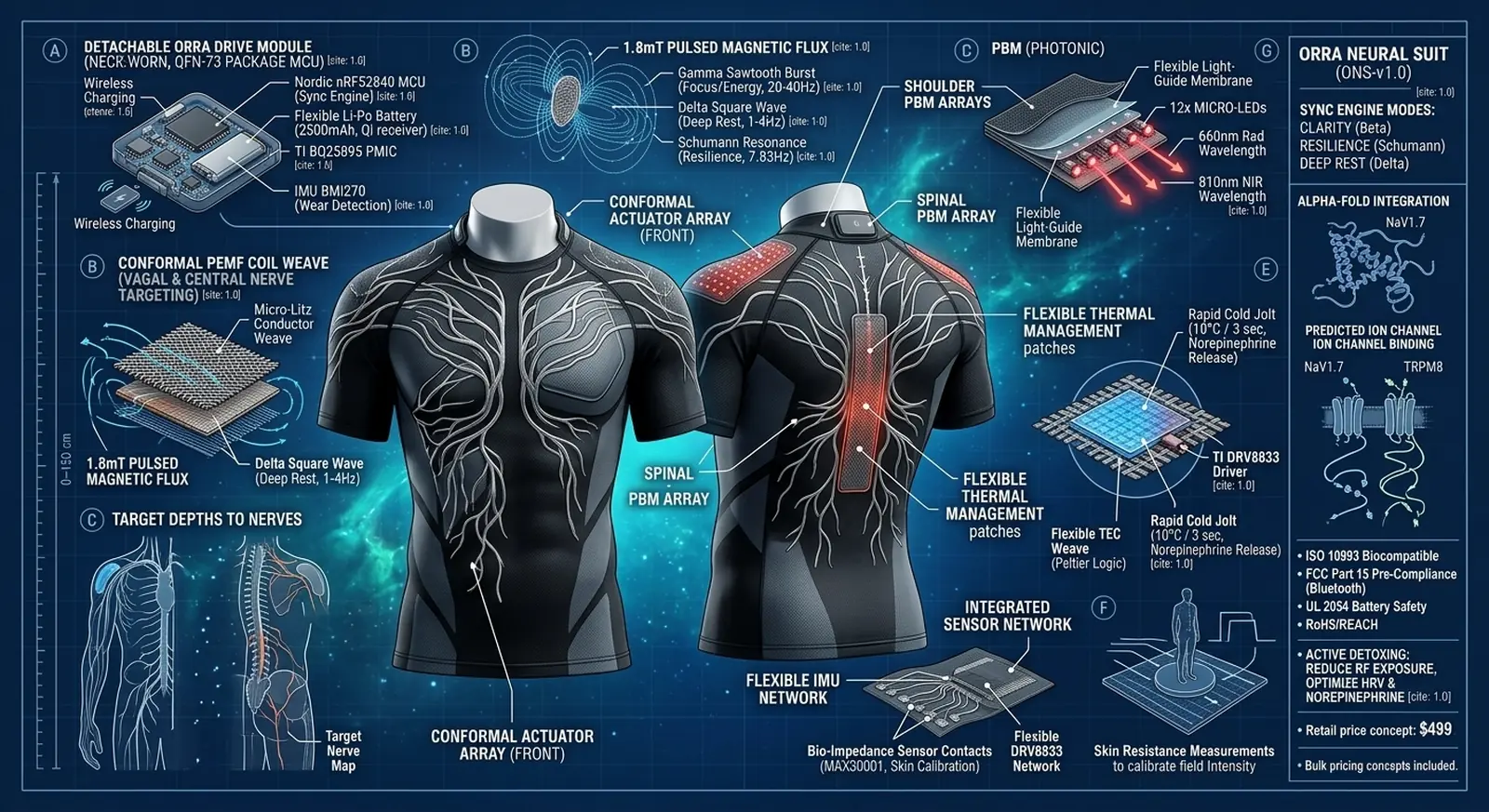

Source drawing
The sheet this page was built from
Everything above was read off one working drawing. It is published here whole, annotations included, so the specification and its source can be checked against each other rather than taken on trust.
Honest position
What we are not saying
ORRA Neural Suit is a general wellness concept. It is not a medical device, it has not been evaluated by the FDA, and it is not intended to diagnose, treat, cure or prevent any disease. No unit has been manufactured, no certification listed on this site is held, and no human data of any kind exists.
The concept retail price of $499 is a design target set against a bill of materials. It is not an offer and there is nothing to buy.
